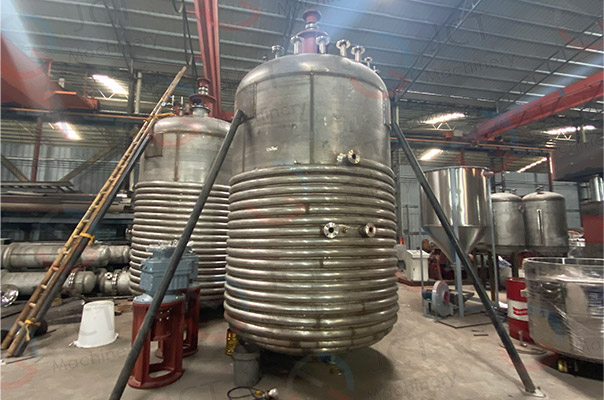

Polyester Resin Production Line

Technical Advantages of Polyester Resin Production Line

1. Efficient reaction and precise control

2. Efficient heat exchange and energy saving

3. Reduced emission of harmful gases

4. Efficient dispersion and mixing technology

5. Fully automated and intelligent production

6. Flexible production capacity and product customization

7. Improved product quality and consistency

8. Quick response and production efficiency

Esterification Reaction

C6​H4​(COOH)2​+HOCH2​CH2​OH→C6​H4​(COOCH2​CH2​O)+H2​O

Polymerization Reaction

C6​H4​(COOCH2​CH2​O)n​→​[C6​H4​(COOCH2​CH2​O)]n​+H2​O

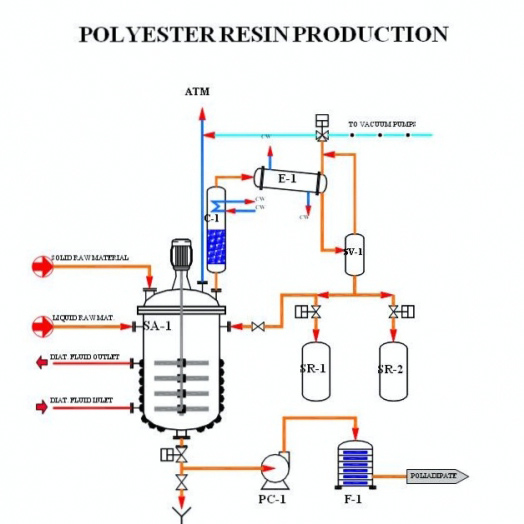

Production Process of Polyester Resin Production Line

1. Raw Material Preparation

Raw materials are pre-treated and weighed to ensure that they are added to the reactor in the correct proportion.

2. Esterification Reaction

Esterification reaction is the first step in the production of polyester resin. The dibasic acid and diol react at a certain temperature and under the action of a catalyst to generate an ester bond and form a prepolymer.

3. Polymerization Reaction

After the esterification reaction, polymerization reaction continues under high temperature and high vacuum environment to further increase the molecular weight of the resin and form the final polyester resin.

4. Cooling and Exhaust

After the polymerization reaction is completed, the resin in the reactor will be cooled by the cooling system, and the excess water or volatile substances will be removed by vacuum to ensure the purity of the resin.

5. Dispersion and Mixing

After the resin completes the reaction, it enters the disperser for uniform mixing to ensure the uniformity and stability of the resin.

6. Post-processing and Packaging

After post-processing processes such as cooling, filtering and drying, the final product is packaged and stored, ready for delivery to customers.

Overall Plant Layout Planning for Polyester Resin Production Line

The layout of the plant should follow the process flow of polyester resin production. The raw material area, reaction area, post-processing area, packaging area, etc. should be laid out in sequence to avoid secondary handling and transportation of materials and reduce unnecessary logistics costs.

Accurate and detailed plant layout planning our business managers and engineers will design according to your existing site size. Please contact us via: +86-181 3837 3963 (Whatsapp, Wechat) or george820606@gmail.com.
